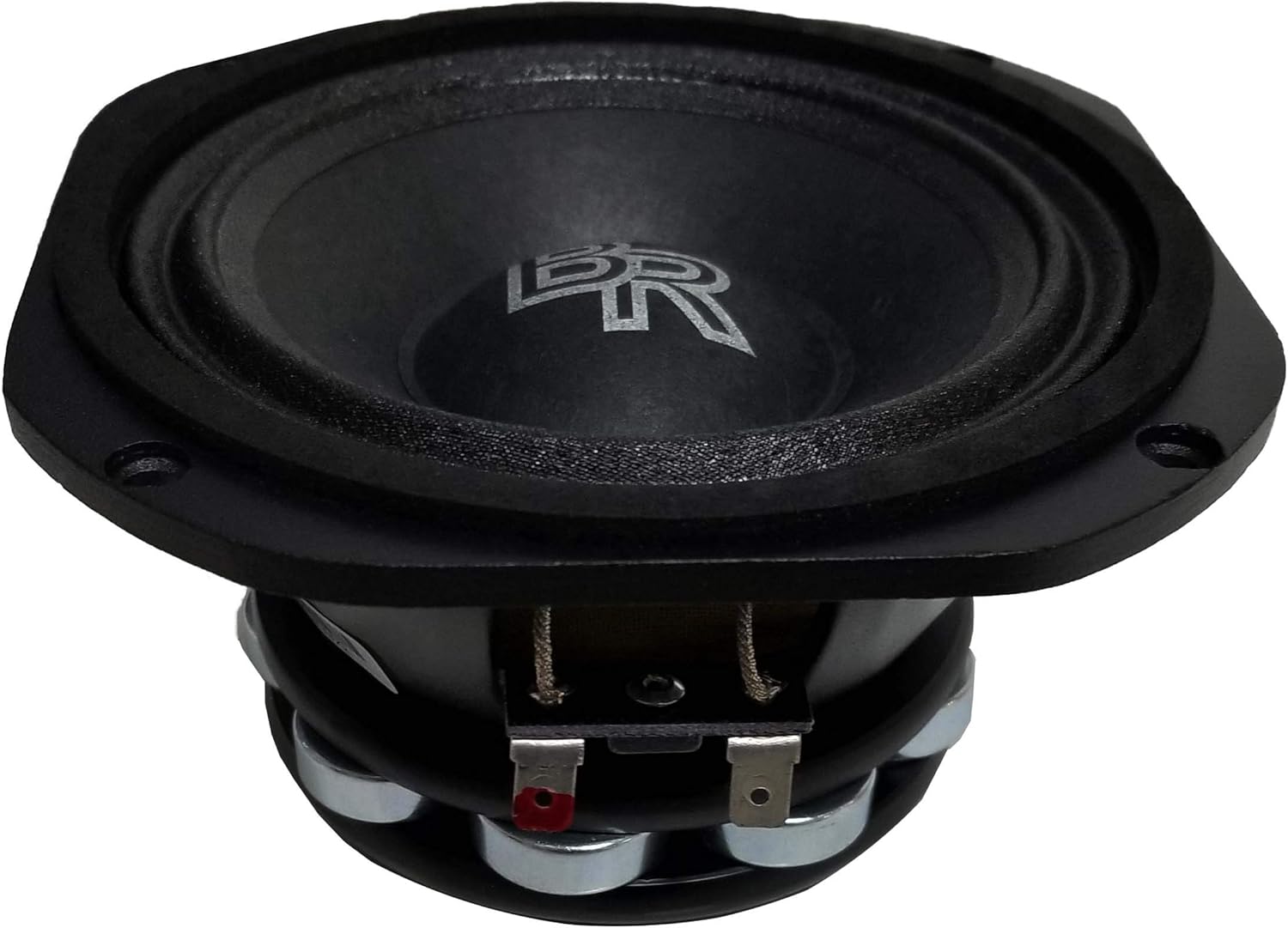

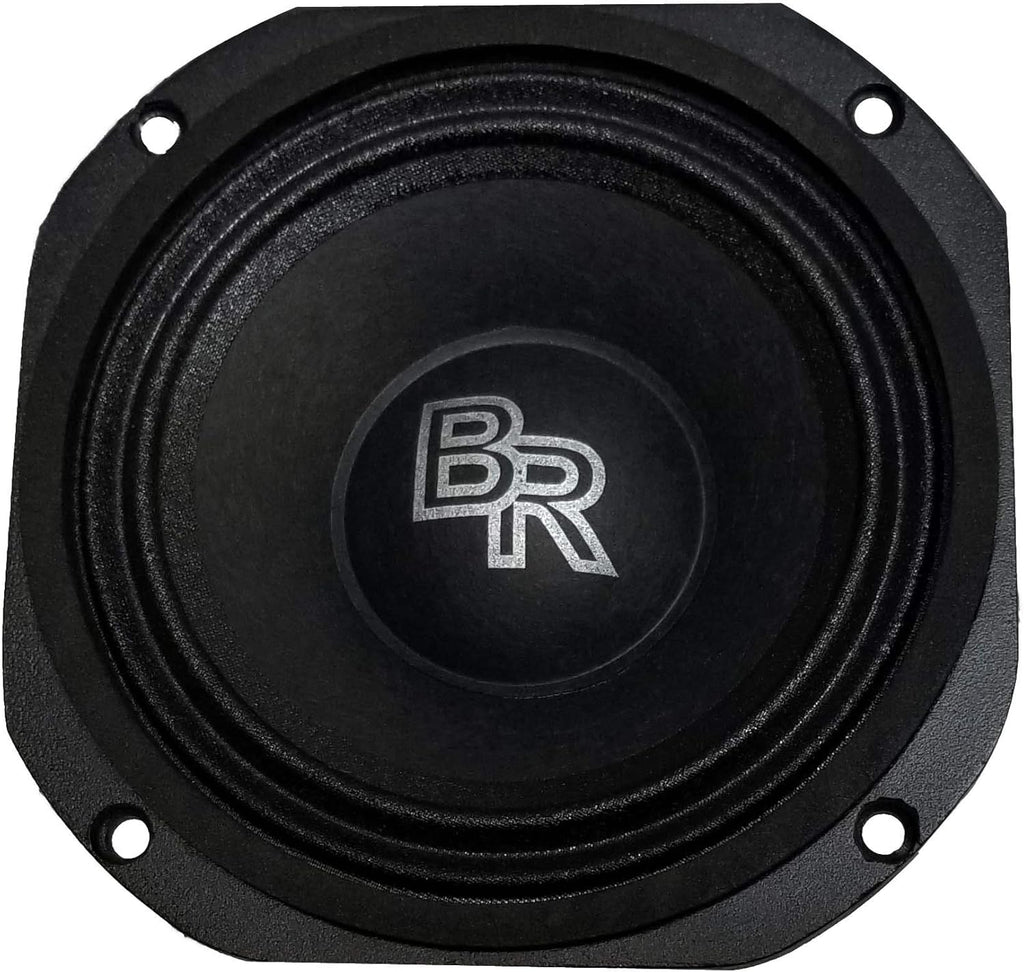

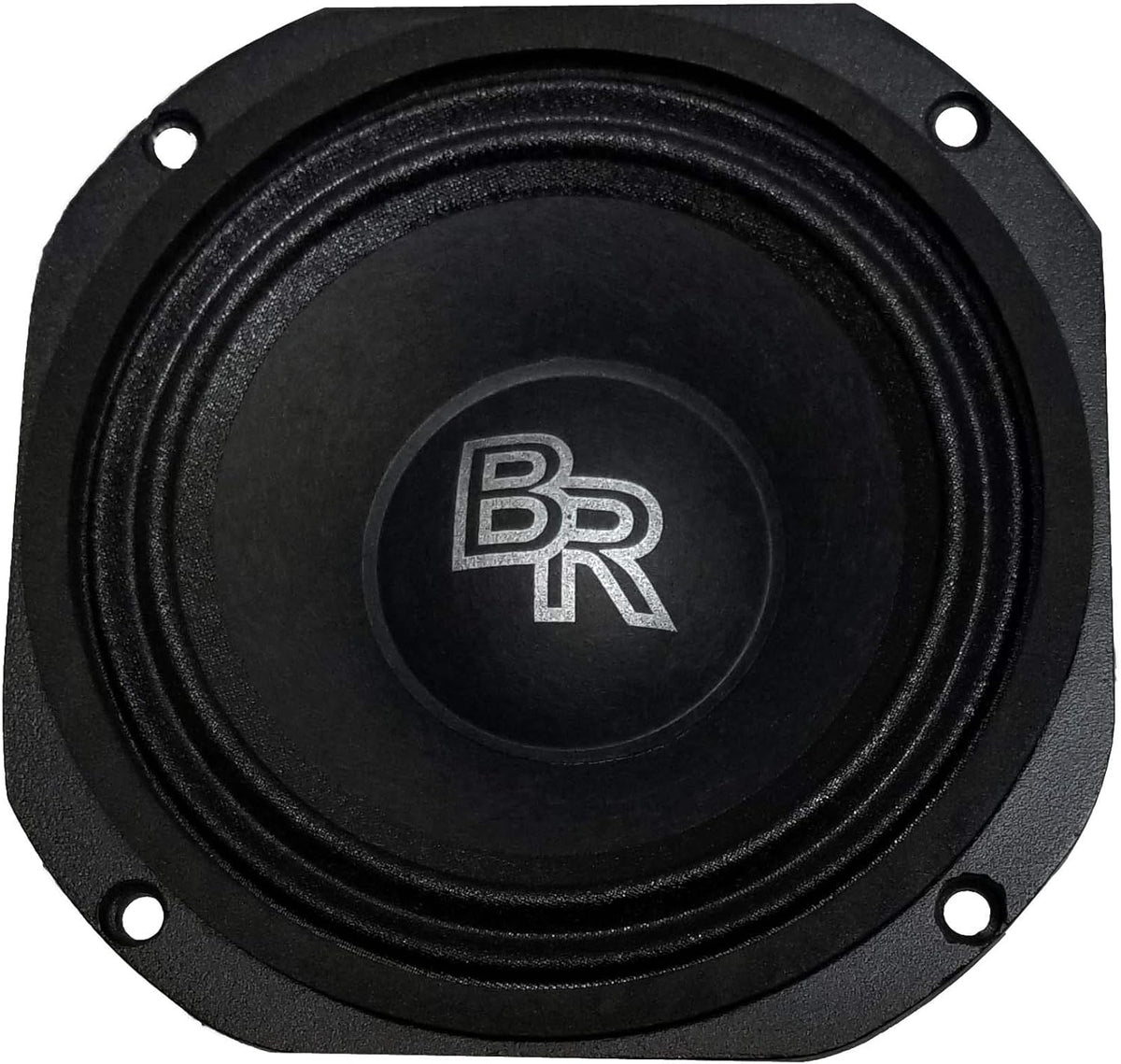

5.25 Inch Neodymium Midrange 8 Ohm Car Speaker D7775
Sale price
$11.50
Regular price $55.48
Skip to product information
High quality neodymium drives this speaker with amazing power and clarity
Perfect for car door speakers, speaker boxes, custom installs, DJ set ups, or anywhere else coaxial speakers can be connected
525 Watts max power - 250W RMS
Frequency Range: 147 - 14k Hz
Baffle Cutout Diameter: 4-23/32'
5.25 Inch Neodymium Midrange 8 Ohm Car Speaker D7775
Sale price
$11.50
Regular price $55.48
Shipping calculated at checkout.
Perfect for car door speakers, speaker boxes, custom installs, DJ set ups, or anywhere else coaxial speakers can be connected
525 Watts max power - 250W RMS
Frequency Range: 147 - 14k Hz
Baffle Cutout Diameter: 4-23/32'
Specifications
- Nominal Diameter: 5-1/4'
- Nominal Impedance: 8 Ohm
- RMS Power: 250 W
- Max Power: 525 W
- Sensitivity (1w/1 m): 90.2dB
- Frequency Range: 147 - 14k Hz
- Voice Coil Diameter: 1.5'
- Air Gap Height: 1/4'
Thiele & Small Parameters
- Resonant frequency, FS: 147 Hz
- D.C Voice Coil resistance, Re: 6 Ohm
- Mechanical Quality factor, QMS: 25.39
- Electrical Quality factor, Qes: 0.51
- Total Quality factor, Qts: 0.50
- Equivalent air volume to Cms, Vas: 1.06 L
- Mechanical resistance, Rms: 0.38 kg/s
- BL Factor, BL: 8.19 N/A
- Effective surface area, SD: 8.3m M
- Linear Excursion, Xmax: 3/32'
Materials
- Basket: Die Cast Aluminium
- Cone: Paper
- Surround: Trested Cloth
- Voice Coil Wire: CCAW
- Voice Coil Bobbin: Kapton
- Magnet: NdFeB
Mounting Information
- Overall Diameter: 5-1/4' x 5-1/4'
- Bolt Circle Diameter: 5-13/32'
- Baffle Cutout Diameter: 4-23/32'
- Depth: 2-31/32'
- Net weight 1.3Kg
