All Aluminum 4 Row Core Radiator with Fan Shroud Combo C626
All Aluminum 4 Row Core Radiator with Fan Shroud Combo C626
Exclusive tube core increases contact area between coolant and aluminum tubes for better heat rejection and cooling
The cooling shroud designed with louver vent to direct airflow, improving cooling
Stronger & higher capacity for coolant than stock one, upgrade design that dramatically increases 40-45% cooling

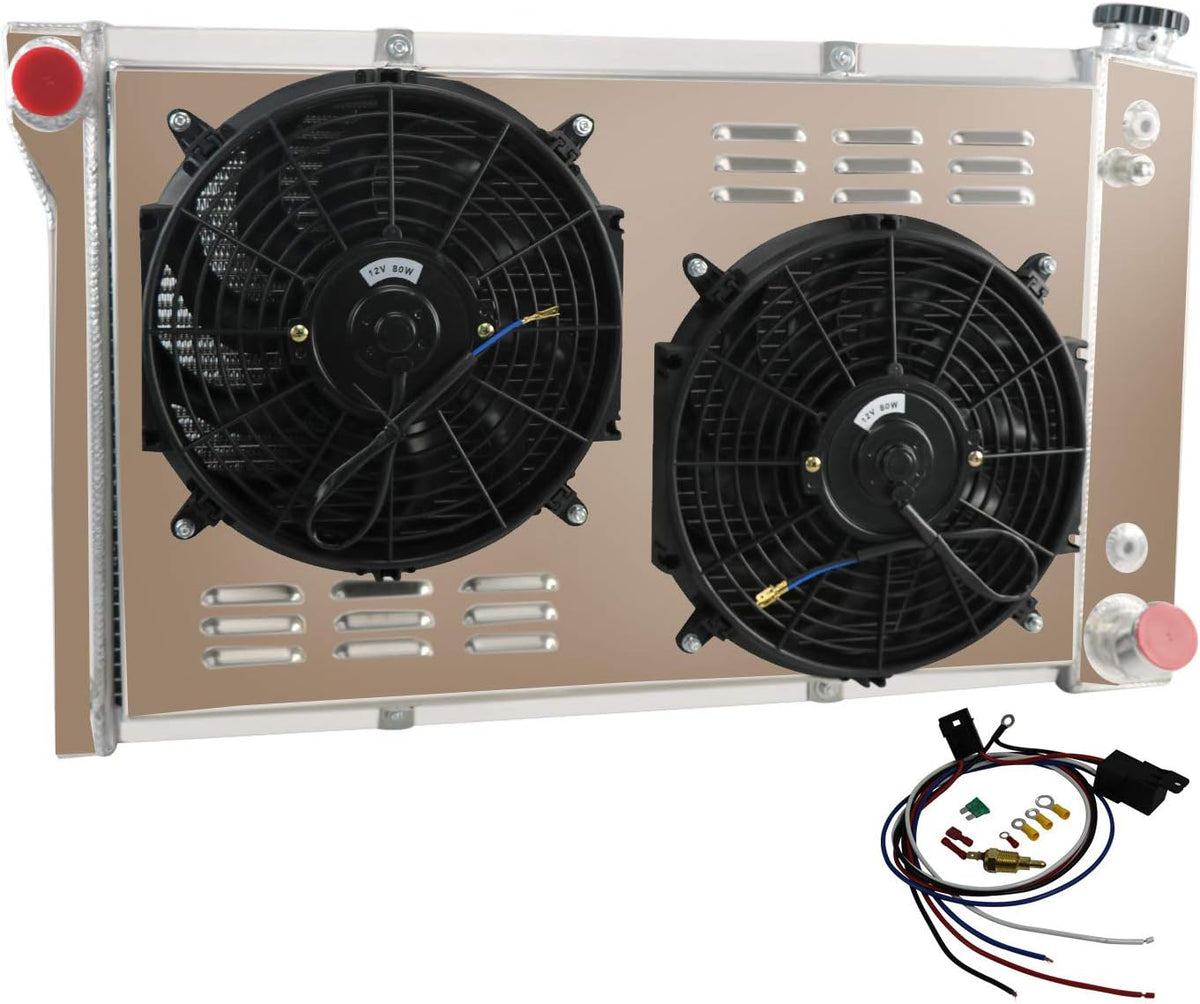

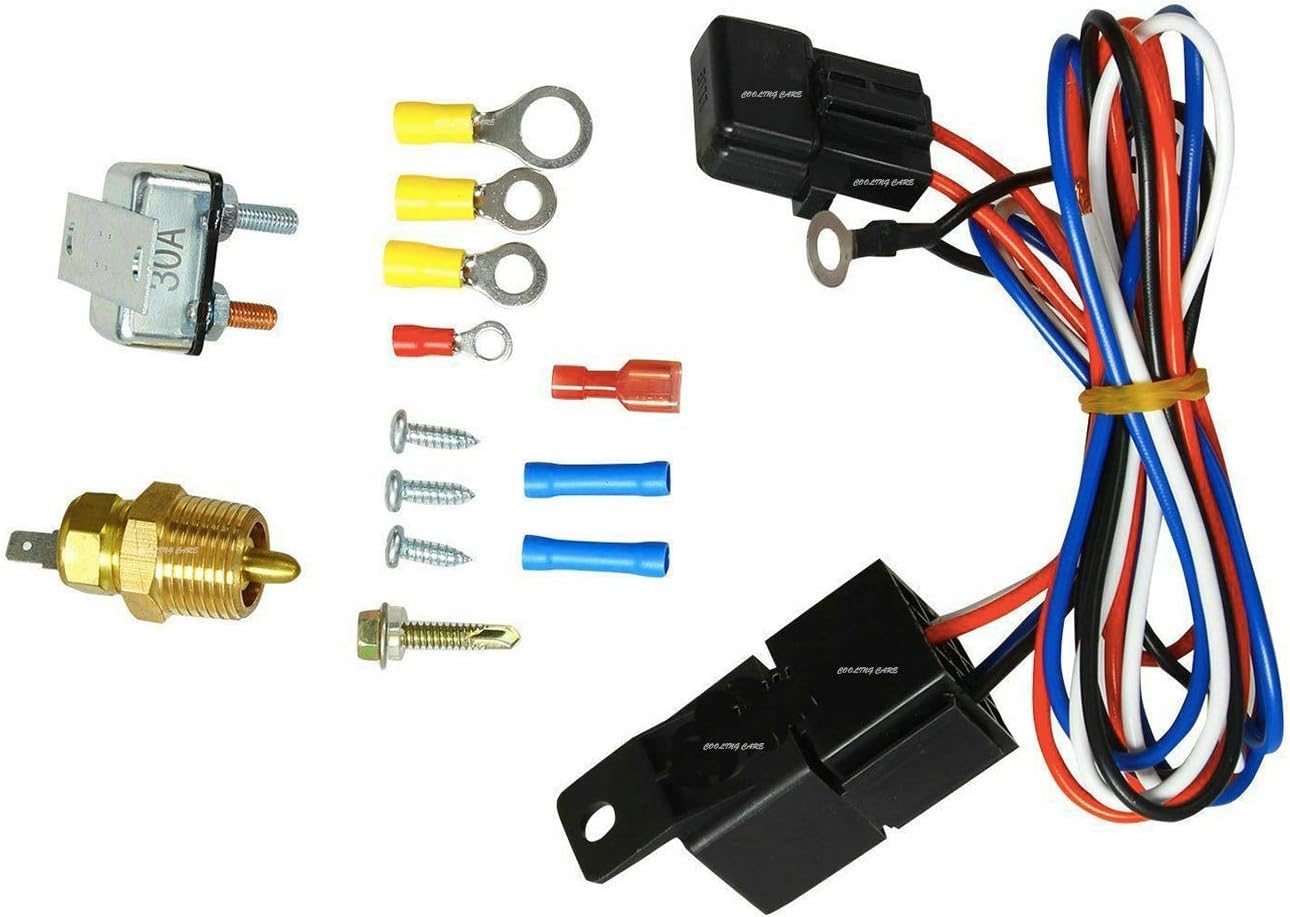

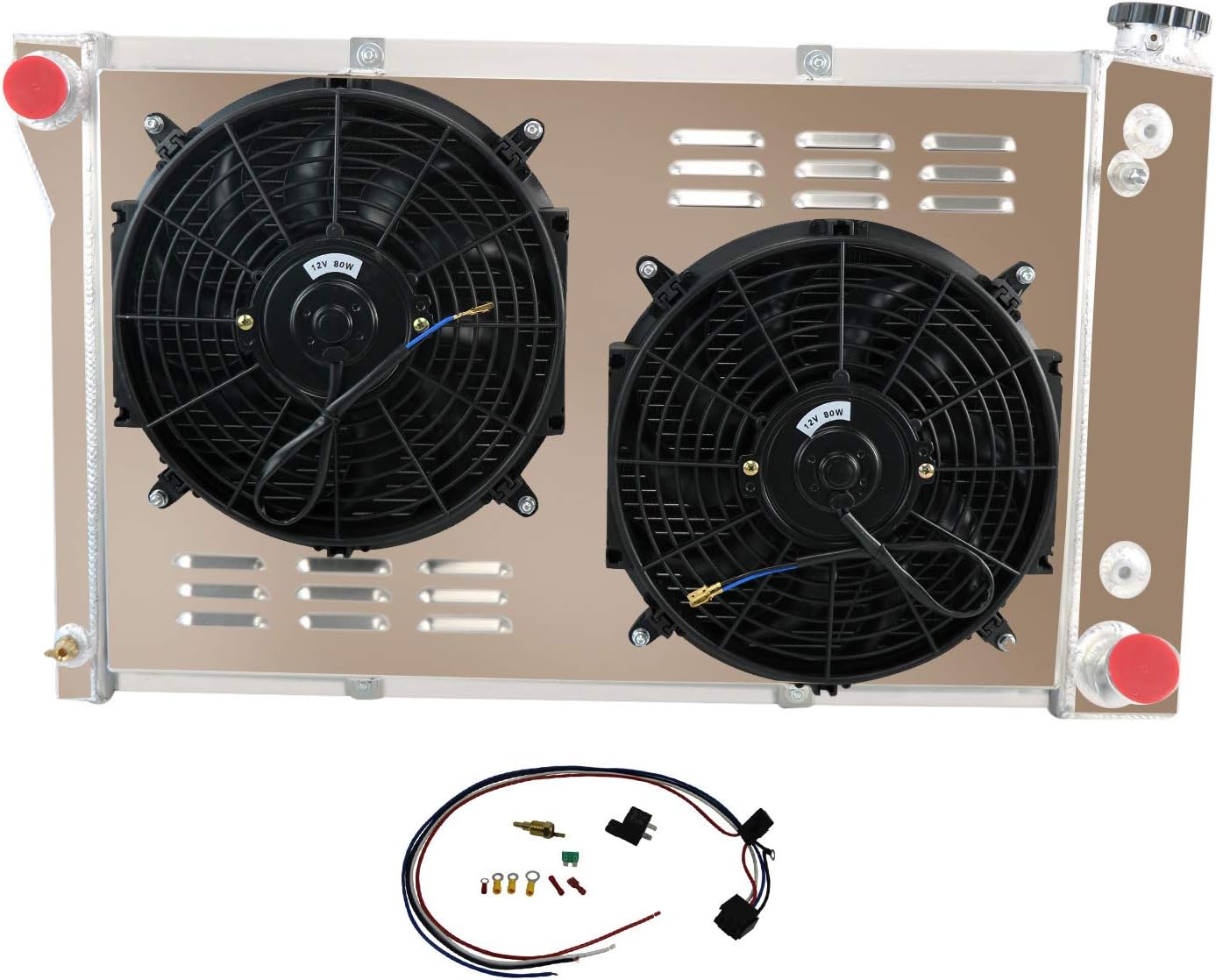

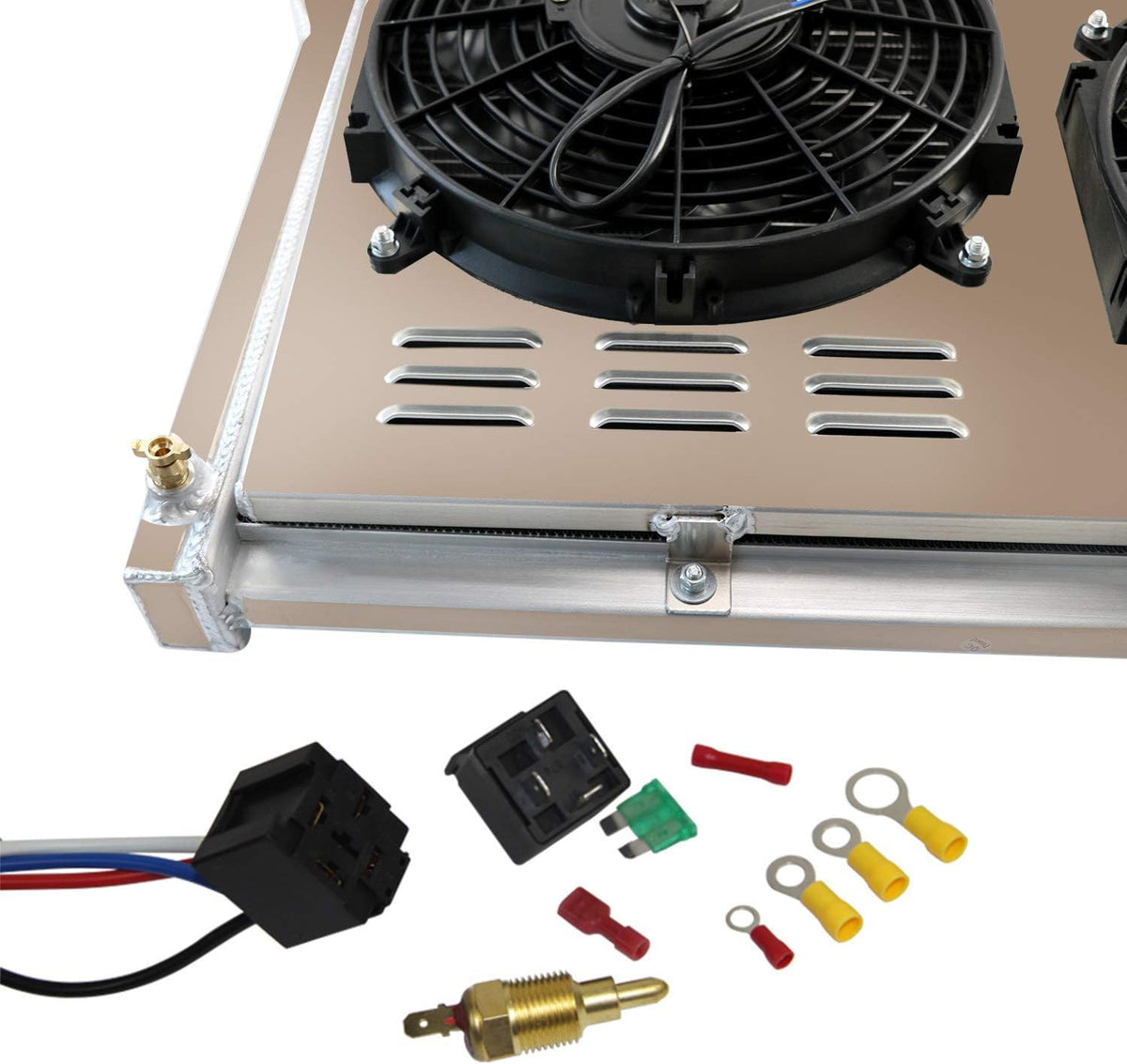

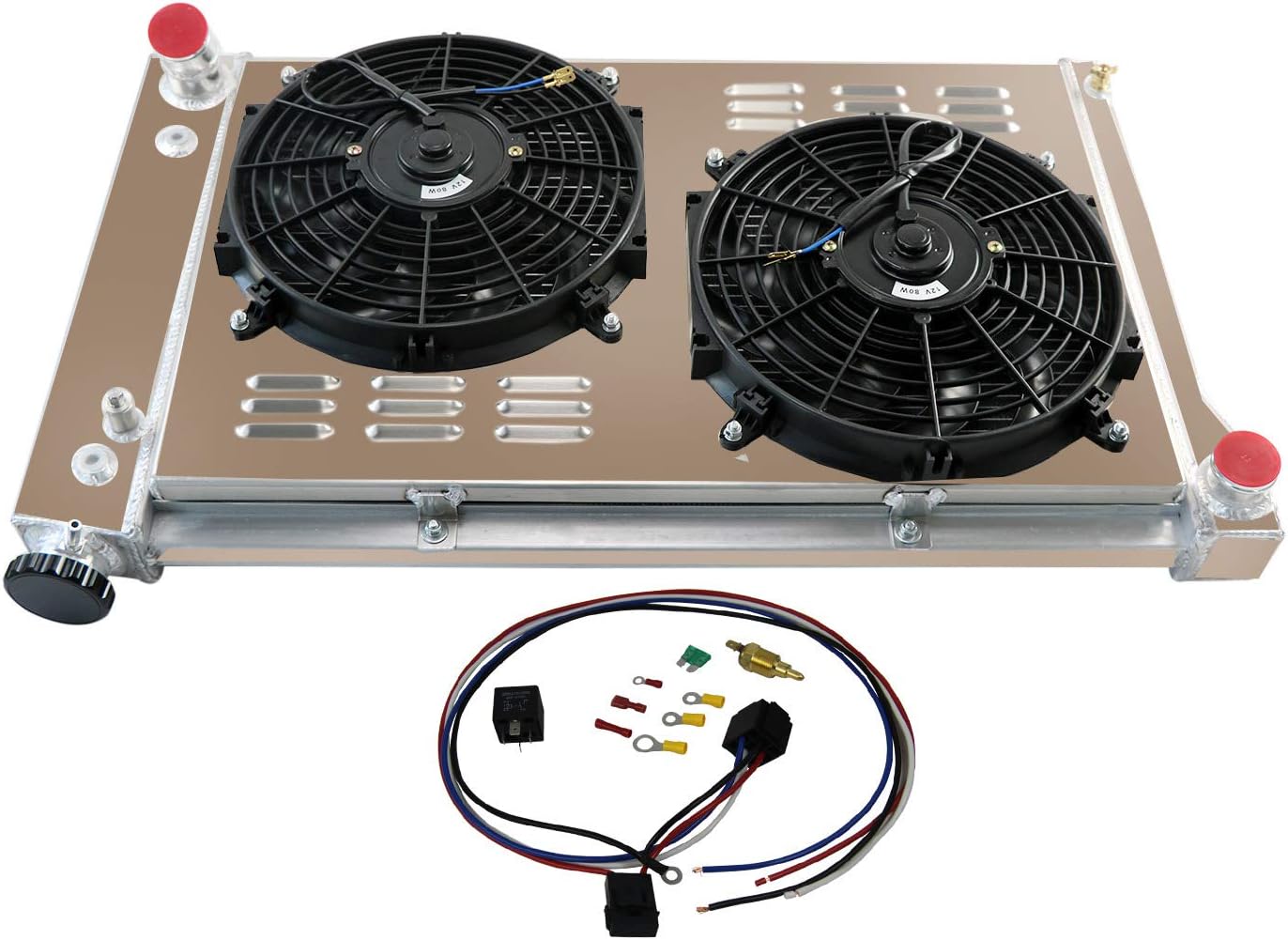

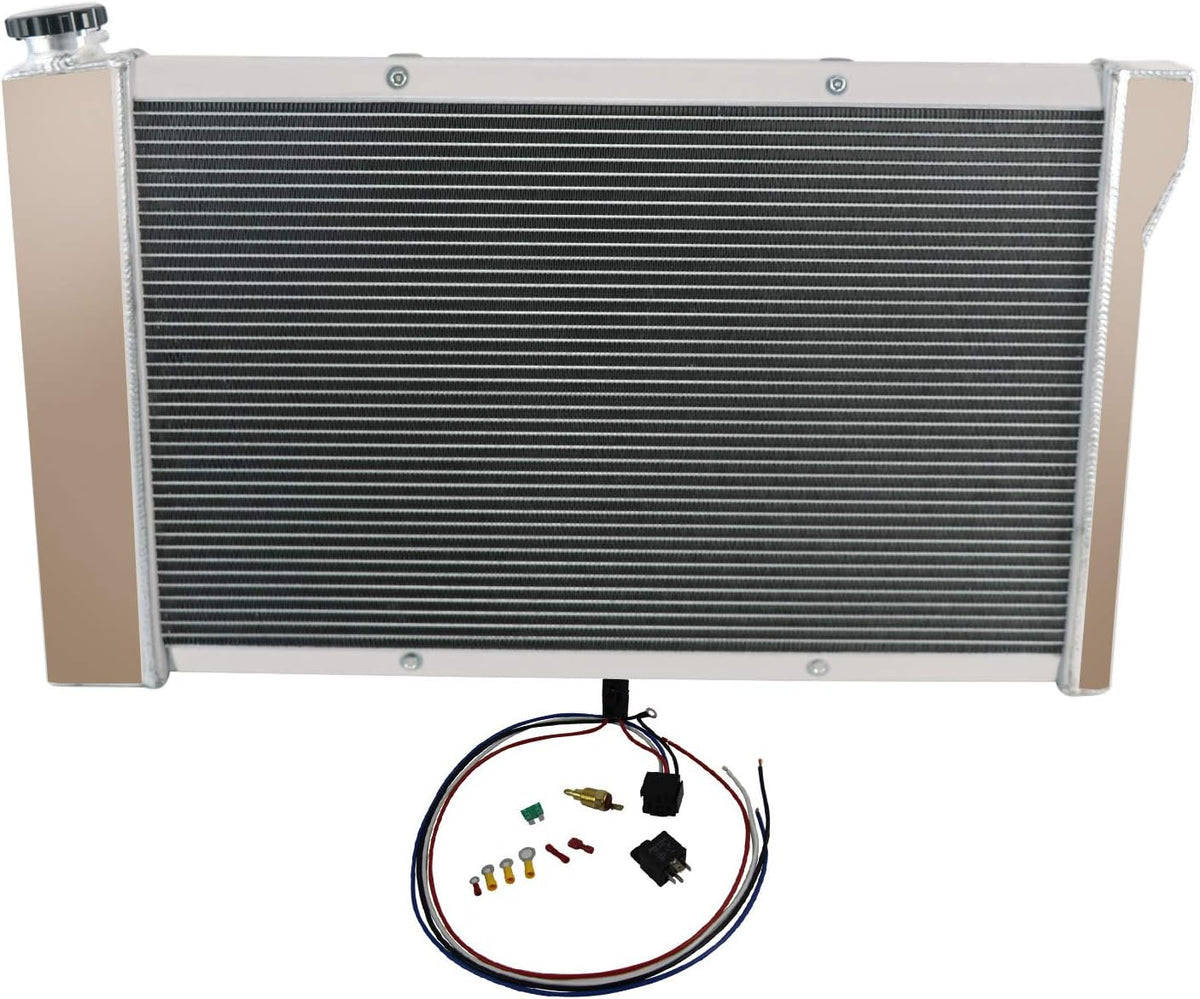

This listing is including aluminum radaitor + 2x12 inch fan w/ shroud+ relay thermostat kits
Because we have two type different width's radiator fit for the same model, pls double check the radiator size before you buy. The another similar radiator ASIN is B07H7CPJFN/ B07HJ1LZN1
This radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. The radiator features a lightweight core, and holds up to more coolant. The CoolingCare radiator showed a 20degF drop in outlet temp compared to the OEM.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
RADIATOR SPECIFICATION
Core Dimensions: 16 1/4' high x 26 1/2' wide x 2 1/2'' thickness
Overall Dimensions: 18 1/4' high x 31 5/8' wide (incl brackets)
Upper Inlet: 1 1/2' located on driver side
Lower Outlet: 1 3/4' located on passenger side
Auto Trans Cooler: ��26��305��G1/4
FAN CONGIGURATION
Maximum Fan CFM: 1730 cfm
Fan Diameter X Height X Thickness:12.05' X 12.05' X 2.5'
Number of Blades: 10 blades (Plastic)
Amp Draw: 12.70 amps
Maximum Fan RPM: 2,250 rpm
